From time to time, I've found myself in a situation where I've needed to re-create MSDB. Unfortunately, most of the guides on how to do it give just basic overviews, leaving the unlucky admin muddling around.
Here is a real step-by-step for SQL Server 2005.
1. Shut down SQL Server.
2. CD to the SQL installation directory, such as %ProgramFiles%\Microsoft SQL Server\MSSQL.1\MSSQL\Binn and run start sqlservr.exe -c -T3608 or go into the Services applet, select the SQL Server service, and enter -c -T3608 in the parameters text area, and click Start.
3. Open SQL Management Studio.
4. Expand Database > System Databases, right-click Master and select New Query.
5. Type sp_detatch_db 'msdb' and press F5 to run.
6. Locate the MSDB files (usually msdbdata.mdf and msdblog.ldf) on your server; typically in %ProgramFiles%\Microsoft SQL Server\MSSQL.1\MSSQL\Data. Move/rename them.
7. Navigate to %ProgramFiles%\Microsoft SQL Server\MSSQL.1\MSSQL\Install and run instmdb.sql by double-clicking it.
8. Shut down SQL server service and restart it normally.
Monday, February 23, 2009
Monday, February 16, 2009
The Ever-Helpful Microsoft Office Project 2007
Microsoft Office Project 2007 is a relatively complex application. There have been a lot of improvements over the years, but one spot for which improvement is sorely needed is in problem identification. Most applications, when you have a syntax or property problem, will tell you on which line the problem occurs or will highlight the affected region.
If only.
In this example, I was working on a relatively complex Project and had made start-date type dependencies on some tasks (Task B can't be started until Task A is finished). I moved a section of tasks from one spot to another several weeks ago, and recently was attempting to update it. Unfortunately, I had set some task dependencies and could not figure out where to go (in a 500+ task project, it can get quite cumbersome). When trying to change a dependency, I was greeted with this oh-so-helpful dialog box:
Huh?
I eventually found it, after reviewing my project line by line. It could have been so much easier if the conflict had just been highlighted. The program obviously knows what lines are affected, since it detected the dependency as circular.
If only.
In this example, I was working on a relatively complex Project and had made start-date type dependencies on some tasks (Task B can't be started until Task A is finished). I moved a section of tasks from one spot to another several weeks ago, and recently was attempting to update it. Unfortunately, I had set some task dependencies and could not figure out where to go (in a 500+ task project, it can get quite cumbersome). When trying to change a dependency, I was greeted with this oh-so-helpful dialog box:
Huh?
I eventually found it, after reviewing my project line by line. It could have been so much easier if the conflict had just been highlighted. The program obviously knows what lines are affected, since it detected the dependency as circular.
Thursday, February 12, 2009
Creating a Windows 2003 TFTP Server
If you read my previous post on configuring Windows Server 2003 DHCP to serve PXE clients, you probably noticed option 066 for Boot Server Host Name.
What is a Boot Server, you may ask?
In simple terms, a boot server runs a TFTP (Trivial File Transfer Protocol) instance that is used to transfer small amounts of data. TFTP is unauthenticated, making it an easy choice for automating remote-boot tasks such as jumpstart and kickstart. For more general information on TFTP, check out Wikipedia.
Windows 2003 has a little-known TFTP daemon. Microsoft stopped advertising some time ago, but it still remained as part of the OS load through 2003 (it is no longer present in 2008) because of its usefulness.
Configuring the Native Windows Server 2003 TFTP Daemon
1. Copy the tftpd.exe file from %windir%\system32\dllcache to %windir%\system32.
>> copy %windir%\system32\dllcache\tftpd.exe %windir%\system32
2. Register tftpd as a service.
>> sc create tftpdsvc binPath= C:\Windows\System32\tftpd.exe DisplayName= "TFTP Server" start= demand
3. Set the Directory parameter to the location where your TFTP boot image files will be stored.
>> REG ADD HKLM\SYSTEM\CurrentControlSet\Services\tftpdsvc\Parameters /v Directory /t REG_SZ /d C:\tftpd
Here's a screen capture of the whole process:
Start the TFTP Server inside the Services MMC (or type net start tftpdsvc from the command prompt). You may get an error if the directory you specified in step 3 doesn't exist, so make sure it does. Also, if you have problems accessing files (you shouldn't, since in this configuration tftpdsvc is running as LocalSystem), you may need to grant "Everyone" or "ANONYMOUS LOGON" access to the boot file directory.
What is a Boot Server, you may ask?
In simple terms, a boot server runs a TFTP (Trivial File Transfer Protocol) instance that is used to transfer small amounts of data. TFTP is unauthenticated, making it an easy choice for automating remote-boot tasks such as jumpstart and kickstart. For more general information on TFTP, check out Wikipedia.
Windows 2003 has a little-known TFTP daemon. Microsoft stopped advertising some time ago, but it still remained as part of the OS load through 2003 (it is no longer present in 2008) because of its usefulness.
Configuring the Native Windows Server 2003 TFTP Daemon
1. Copy the tftpd.exe file from %windir%\system32\dllcache to %windir%\system32.
>> copy %windir%\system32\dllcache\tftpd.exe %windir%\system32
2. Register tftpd as a service.
>> sc create tftpdsvc binPath= C:\Windows\System32\tftpd.exe DisplayName= "TFTP Server" start= demand
3. Set the Directory parameter to the location where your TFTP boot image files will be stored.
>> REG ADD HKLM\SYSTEM\CurrentControlSet\Services\tftpdsvc\Parameters /v Directory /t REG_SZ /d C:\tftpd
Here's a screen capture of the whole process:
Start the TFTP Server inside the Services MMC (or type net start tftpdsvc from the command prompt). You may get an error if the directory you specified in step 3 doesn't exist, so make sure it does. Also, if you have problems accessing files (you shouldn't, since in this configuration tftpdsvc is running as LocalSystem), you may need to grant "Everyone" or "ANONYMOUS LOGON" access to the boot file directory.
Configuring Windows 2003 DHCP for PXE Clients
Today, I was lending a hand to one of our Linux admins who was trying to get his servers Kickstarted. For the unitiated, Kickstart is the Linux equivalent to Windows RIS.
PXE stands for Pre-boot eXecution Environment. PXE clients (commonly known as "diskless workstations") rely on DHCP to tell them where to go for their boot configuration and software. Windows 2003 can handle these requests, with a little bit of work.
Supporting PXE clients requires the following options:
003 Router (potentially, if resources you need are on a different subnet)
013 Boot File Size
043 Vendor Specific Info
060 ClassID
066 Boot Server Host Name
067 Bootfile Name
So, off you go to configure it. But wait, Windows 2003 DHCP doesn't have option 060! What now?
Relax. Fortunately, there's a way to configure the DHCP service to have this option.
On your DHCP server, open up a command prompt and launch netsh.
As you can see, the commands are:
C:>netsh
netsh>dhcp
netsh dhcp>server \\test
netsh dhcp server>add optiondef 60 ClassID String 0
netsh dhcp server>set optionvalue 60 STRING PXEClient
You can actually add any of the RFC options for DHCP through this context. Microsoft ships the basic ones, but with netsh, you can customize the DHCP service.
Then, restart the DHCP service. If you have the service and management console running while you do this, you'll see "Unknown Option" when you look under server options.
Launch the DHCP Admin Conosole, and navigate to your scope (or server) options, depending on where you want to set your PXE boot options.
Right-click "Scope Options" (or "Server Options," as appropriate) and select Configure Options.
Select option 013 Boot File Size, and enter the boot file size in 512 octet blocks. For example, if your boot file is 32KB, convert it to bytes (1024*32, which is 32768), and then divide that number by 512 (32768/512). Put the result (64) in the data field.
Select option 043 Vendor Specific Info and enter the following binay value:
01 04 00 00 00 00 ff
Select option 066 Boot Server Host Name and enter the IP address of the TFTP server hosting your boot image in the data field.
Select option 067 Bootfile Name and enter the name of the boot image that you wish to use.
Ensure your devices have PXE-enabled NICs (if you're using newer servers, nearly all of them do) and boot. If you need help on setting up a TFTP Server on Windows 2003, look no further.
PXE stands for Pre-boot eXecution Environment. PXE clients (commonly known as "diskless workstations") rely on DHCP to tell them where to go for their boot configuration and software. Windows 2003 can handle these requests, with a little bit of work.
Supporting PXE clients requires the following options:
003 Router (potentially, if resources you need are on a different subnet)
013 Boot File Size
043 Vendor Specific Info
060 ClassID
066 Boot Server Host Name
067 Bootfile Name
So, off you go to configure it. But wait, Windows 2003 DHCP doesn't have option 060! What now?
Relax. Fortunately, there's a way to configure the DHCP service to have this option.
On your DHCP server, open up a command prompt and launch netsh.
As you can see, the commands are:
C:>netsh
netsh>dhcp
netsh dhcp>server \\test
netsh dhcp server>add optiondef 60 ClassID String 0
netsh dhcp server>set optionvalue 60 STRING PXEClient
You can actually add any of the RFC options for DHCP through this context. Microsoft ships the basic ones, but with netsh, you can customize the DHCP service.
Then, restart the DHCP service. If you have the service and management console running while you do this, you'll see "Unknown Option" when you look under server options.
Launch the DHCP Admin Conosole, and navigate to your scope (or server) options, depending on where you want to set your PXE boot options.
Right-click "Scope Options" (or "Server Options," as appropriate) and select Configure Options.
Select option 013 Boot File Size, and enter the boot file size in 512 octet blocks. For example, if your boot file is 32KB, convert it to bytes (1024*32, which is 32768), and then divide that number by 512 (32768/512). Put the result (64) in the data field.
Select option 043 Vendor Specific Info and enter the following binay value:
01 04 00 00 00 00 ff
Select option 066 Boot Server Host Name and enter the IP address of the TFTP server hosting your boot image in the data field.
Select option 067 Bootfile Name and enter the name of the boot image that you wish to use.
Ensure your devices have PXE-enabled NICs (if you're using newer servers, nearly all of them do) and boot. If you need help on setting up a TFTP Server on Windows 2003, look no further.
Sunday, February 8, 2009
Optimizing Exchange Disk Performance with Diskpart
Since a lot of folks (myself included) are still running a lot of Exchange 2003 in the enterprise, I though I would post a bit about setting the track alignment properly in various kinds of storage.
According to Microsoft, when creating disk partitions, the "Disk Management" MMC snap-in mis-aligns the partition with the underlying physical disk. On disks where there are 64 sectors per track, for example, the Disk Management MMC starts the partrition at the 64th sector instead of the 65th sector. It may not sound like a big deal, but in Exchange-land (and really any high-performance database), I/O that overlaps two tracks can degrade your performance by as much as 20%.
On Windows 2003, you use Diskpart.exe to set the starting offset for partitions. You can look in the Disk Management MMC snap-in to determine which disks you want to manipulate. Note the disk numbers on the left-hand side. You will reference these numbers inside Diskpart.

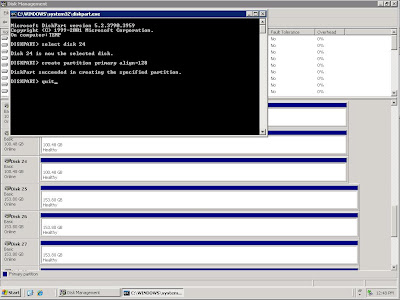

In this example, the disk that I want to manipulate is Disk 24.
Click Start > Run and type diskpart.
Diskpart is a command-line utility. Never fear, the syntax is pretty simple. You can type help for a list of commands. Commands have context sensitive help, so typing create partition ? will return a list of modifiers you can use.
In this example, I'm using a Pillar Axiom 600, and the vendor has recommended using an offset of 128. Armed with that knowledge, I will select disk 24 and perform the partition creation command.
From there, you can go back into the Disk Management MMC, assign a drive letter or mount point and format the volume. It's now ready for databases.
I'll update this post periodically with recommended offsets for various types of storage. As an info-byte, Diskpar (Windows 2003) creates partition offsets in KB while Diskpar (Windows 2000) creates them in sectors or blocks.
Use these settings to optimize your Exchange storage. For more interesting and informative articles on disk alignment, check out these links:
Optimizing Storage for Exchange Server 2003 - (Microsoft Technet)
Why should you use Diskpar (Diskpart in W2003 SP1)? - (MSExchange Team Blog)
Disk Sector Alignment - (Christian Bolton's SQL Server Blog)
Disk Partition Alignment (Sector Alignment) for SQL Server: Part 1: Slide Deck - (Jimmy May, Aspiring Geek)
According to Microsoft, when creating disk partitions, the "Disk Management" MMC snap-in mis-aligns the partition with the underlying physical disk. On disks where there are 64 sectors per track, for example, the Disk Management MMC starts the partrition at the 64th sector instead of the 65th sector. It may not sound like a big deal, but in Exchange-land (and really any high-performance database), I/O that overlaps two tracks can degrade your performance by as much as 20%.
On Windows 2003, you use Diskpart.exe to set the starting offset for partitions. You can look in the Disk Management MMC snap-in to determine which disks you want to manipulate. Note the disk numbers on the left-hand side. You will reference these numbers inside Diskpart.
In this example, the disk that I want to manipulate is Disk 24.
Click Start > Run and type diskpart.
Diskpart is a command-line utility. Never fear, the syntax is pretty simple. You can type help for a list of commands. Commands have context sensitive help, so typing create partition ? will return a list of modifiers you can use.
In this example, I'm using a Pillar Axiom 600, and the vendor has recommended using an offset of 128. Armed with that knowledge, I will select disk 24 and perform the partition creation command.
From there, you can go back into the Disk Management MMC, assign a drive letter or mount point and format the volume. It's now ready for databases.
I'll update this post periodically with recommended offsets for various types of storage. As an info-byte, Diskpar (Windows 2003) creates partition offsets in KB while Diskpar (Windows 2000) creates them in sectors or blocks.
| Storage System | Recommended Diskpart Alignment |
| EMC Symmetrix DMX | 64 |
| HP StorageWorks EVA | 64 |
| Pillar Axiom | 128 |
Use these settings to optimize your Exchange storage. For more interesting and informative articles on disk alignment, check out these links:
Optimizing Storage for Exchange Server 2003 - (Microsoft Technet)
Why should you use Diskpar (Diskpart in W2003 SP1)? - (MSExchange Team Blog)
Disk Sector Alignment - (Christian Bolton's SQL Server Blog)
Disk Partition Alignment (Sector Alignment) for SQL Server: Part 1: Slide Deck - (Jimmy May, Aspiring Geek)
